INCH-POUND
MS51840D
7 January 2011 SUPERSEDING MS51840C
21 April 1983
DETAIL SPECIFICATION SHEET PLUG, MACHINE THREAD, O-RING
Reactivated after 7 January 2011 and may be used for
new and existing designs and acquisitions.
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and SAE J514, "Hydraulic Tube Fittings".
NOTES:
1. All dimensions are in inches.
2. Dash numbers and dimensions are shown in table I.

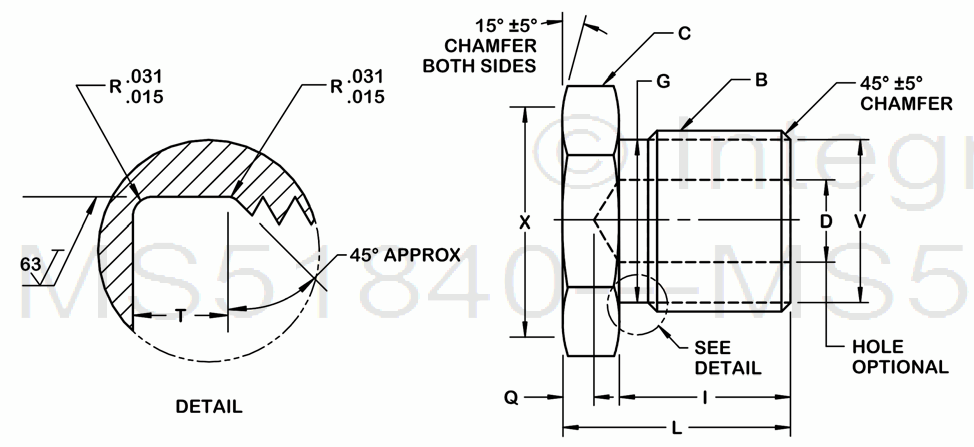

FIGURE 1. Machine thread o-ring plug.
AMSC N/A FSC 5365
