MIL-DTL-85069/10A
PANEL
THICKNESS
0.010
45° X 0.005

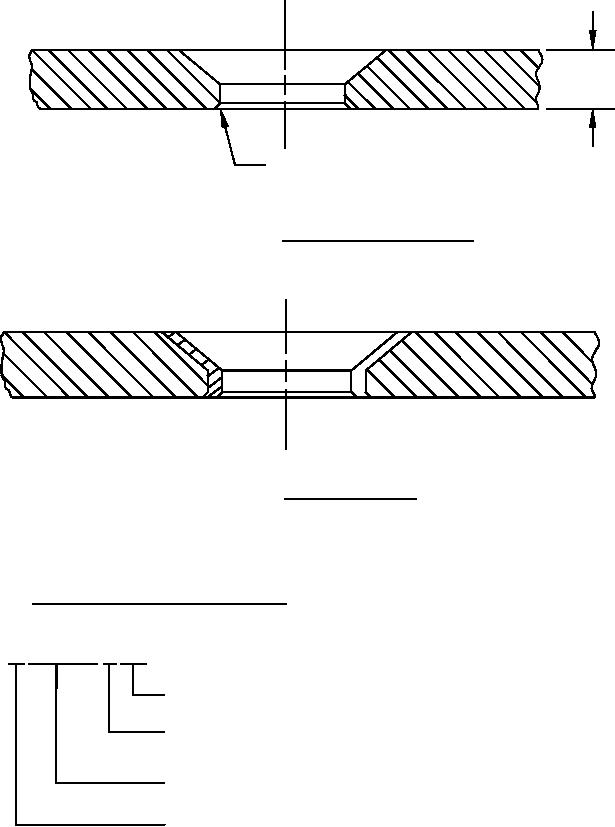

FIGURE 2. Grommet hole preparation.
FIGURE 3. Installed grommet.
GENERAL INFORMATION:
9. Part or identification number (PIN). The PIN to be used for sleeve grommets acquired
to this specification is created as follows:
M 85069/10-X XX
Fastener shank diameter dash number (see figure 1)
Surface finish: N = none
P = cadmium plate, type II, class 2
Specification sheet number
M prefix
3
