MIL-DTL-85069D
NOTES:
1. Dimensions are in inches and shall apply prior to surface finish. Refer to table IV.
2. Sleeves may be procured in standard required lengths or may be adjusted to required length as needed.
3. Sleeves 05 and 55, ungrooved for last 0.188 of L.
Sleeves 06 and 08, ungrooved for last 0.250 of L.
Sleeves 10 and 12, ungrooved for last 0.312 of L.

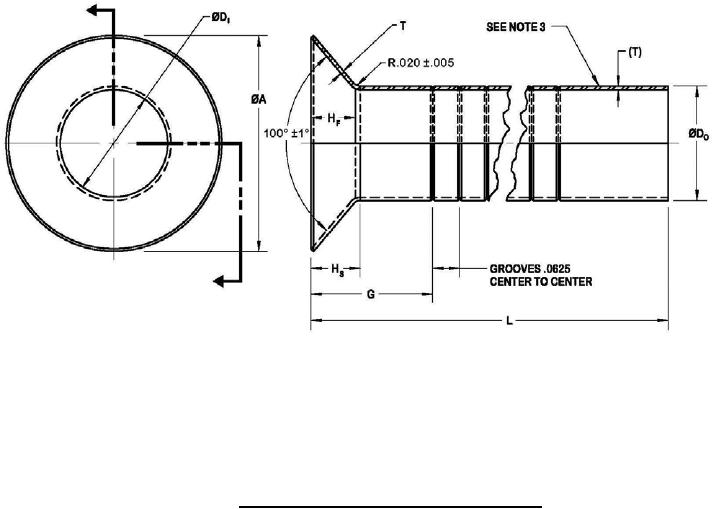

FIGURE 2. Grooved sleeve fastener, 100-degree head.
